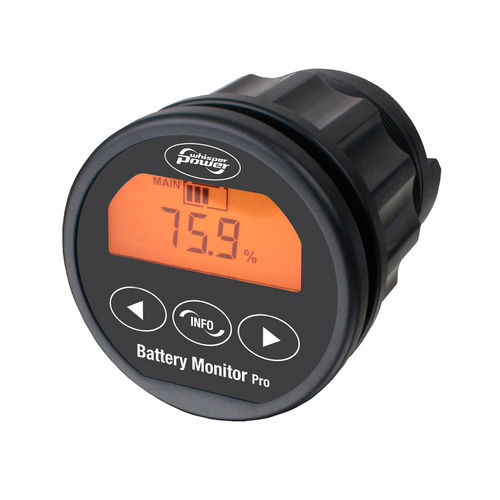

Boat indicator PRO

monitoringdigitalfor battery

TECHNICAL SPECIFICATIONS Supply voltage range - 9..35 VDC Supply current1) : @Vin=24VDC - 7 mA @Vin=12VDC - 9 mA Input voltage range (auxiliary battery) - 2..35 VDC Input voltage range (main battery) - 0..35 VDC Input current range2) - -9999..+ 9999 A Battery capacity range - 20..9990 Ah Operating temperature range - -20..+50°C Material of housing - ABS Color - RAL 7021 black/ grey Protection class - IP20 (frontpanel only IP65) READOUT RESOLUTION Voltage - ± 0.01 V (0..35 V) Current - ± 0.1 A (0..200 A) Current - ± 1 A (200..9999 A) capacity range - ± 0.1 Ah (0..200 Ah) capacity range - ± 0.1 Ah (0..200 Ah) state-of-charge (0..100%) - ± 0.1% time remaining (0..24hrs) - ± 1 mn time remaining (24..240hrs) - ± 1 hr temperature (-20..+50°C) - ± 0.5 °C Voltage measurement accuracy - ± 0.3% Current measurement accuracy - ± 0.4% DIMENSIONS frontpanel / body diameter - ø 64 mm / ø 52 mm total depth / weight - 79 mm / 95 gr SHUNT DIMENSIONS FOOTPRINT footprint - 45 x 87 mm height - 17 mm (base) / 35 mm weight - 145 gr
