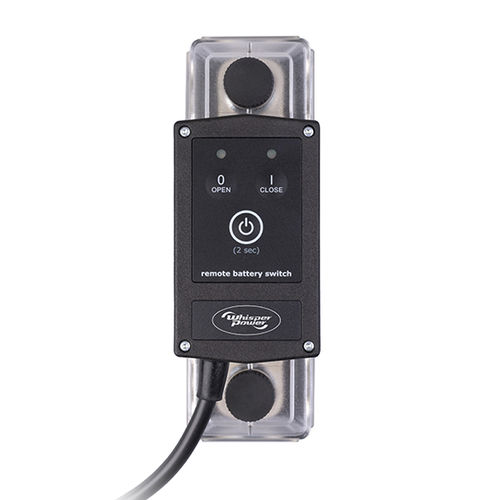

Single-pole battery switch 50214734

The DC Modular Remote Battery Switch (the Switch) is a smart high current magnetic latching contactor, that can handle continuous DC currents of up to 500 Amps. The Switch can easily be installed in an engine room or battery compartment, while being controlled from a more convenient location by a small panel mounted switch. But the Switch can for instance also be controlled by a battery monitor or Lithium battery, as a discharge/overcharge protection. TECHNICAL SPECIFICATIONS Rated voltage - 60 VDC Nominal current - 500 A Cranking current (1min.) - 1000 A Nominal make / break current - 500 A (0..34 Vdc) / 350 A (35..60 Vdc) Peak make / break current - 1600 A (0..34 Vdc) / 1200 A (35..60 Vdc) CONTROL CIRCUIT (ELECTRICAL) Coil / supply voltage (+Vdc) - 14..34 VDC Coil / supply current (idle state) 1) - < 100uA Coil / supply current (state change) 1) - < 3 A GENERAL Remote control - By control wires Local control 2) - Top side buttons (On/Standby, Close contact, Open contact) Indicators - Top side LEDs for Contact open, Contact closed, Error and Setup Mechanical life - 100000 cycles Electrical life - 10000 cycles Operating temperature range - -20..+60°C Connection stud size - M10 DC Modular grid size - 1x3 Protection class - IP65 Dimensions - 150.0 x 50.0 x 94.0 mm Weight - 800 gr
