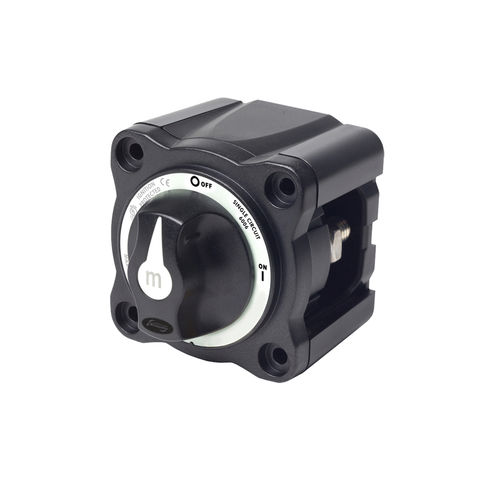

Single-pole battery switch 50214701

INPUT Battery input - 1 Switch Positions - 2 Battery combine function - - I 10 Cranking rating 10 sec - 1500 A I 60 Cranking rating 1 min - 775 A I 300 Cintermittent rating 5 min - 500 A I C continue rating - 300 A Vmno Voltage maxium Operation - 48 VDC GENERAL Ambient operation temperature - -20 °C … + 40 °C Storage temperature - -25 °C … + 85 °C Operating humidity - 95%, non condens MECHANICAL Connections terminal stud - M10 (3/8’-.16) Connections stud lenght - 22 mm Maximum terminal Stud Torque - 13.56 NM (120 in-lb) Terminal material - Tin-plated copper Enclosure width - 72 mm Enclosure height - 78 mm Weight - 0.28 kg Drilling mounting centers - 55 mm Rear panel mount diameter - 59 mm dia Mounting srews - 10 mm Ingress Protection Class - IP66 Enclosure Colour - RAL9011 Graphite Black Cable clearance - 28 mm (1.12’) Ignition Protection - Ul 1500 SAE J1171 Markings - CE, Iso 8846
