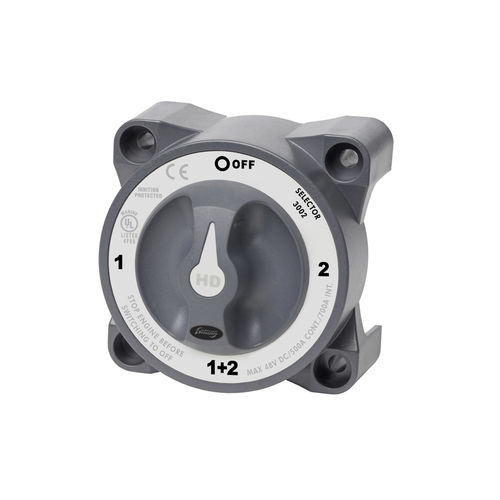

Selector battery switch 50214712

INPUT Battery input - 2 Switch Positions - 4 Battery combine function - Yes I 10 Cranking rating 10 sec - 2750 A I 60 Cranking rating 1 min - 1150 A I 300 Cintermittent rating 5 min - 500 A I C continue rating - 500 A Vmno Voltage maxium Operation - 32 VDC GENERAL Ambient operation temperature - -20 °C … + 40 °C Storage temperature - -25 °C … + 85 °C Operating humidity - 95%, non condens MECHANICAL Connections terminal stud - M12 (1/2’) Connections stud lenght - 22 mm Maximum terminal Stud Torque - 24.86 NM (220 in-lb) Terminal material - Tin-plated copper Enclosure width - 98 mm Enclosure height - 79 mm Weight - 0.59 kg Drilling mounting centers - 77 mm Rear panel mount diameter - 92 mm dia Mounting srews - M6 srew Ingress Protection Class - IP67 Enclosure Colour - RAL7024 Graphite Grey Cable clearance - 27.9 mm Ignition Protection - Ul 1500 SAE J1171 Markings - CE, Iso 8846
