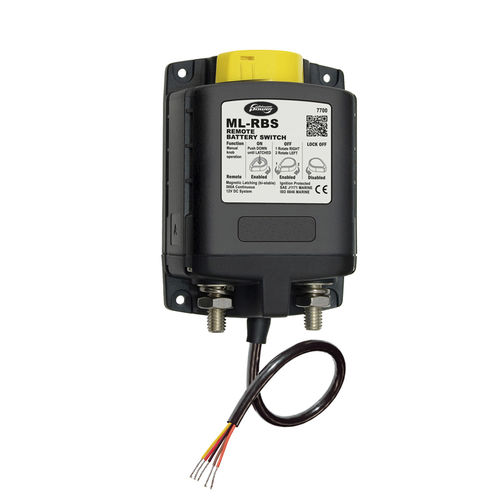

Boat relay 50214735

for electrical circuits

GENERAL Model type - 12 VDC Magnetic Latch Charging relay, link batteries Circuit type - Bi stable ACR INPUT Battery input - 2 Switch Positions - 2 Manual overide - Locked off/on I 10 Cranking rating 10 sec - 2500A I 60 Cranking rating 1 min - 1100A I 300 Cintermittent rating 5 min - 700A I C continue rating - 500A Vmno Voltage maxium Operation - 32VDC Control Circuit Voltage - 10.1..16.5VDC Operatiuon current continous - < 40mA Operation current when charging - < 7 A Remote Control switch when charging - 100 mA Automatically combines battery banks when senses voltage levels are: - Above 13.5 for 30 sec. / Above 13.0 for 90 sec. Automatically isolates battery banks when sensed voltage levels are: - Below 9.6V (undervoltage lockout) / Below 12.35V for 10 sec. / Below 25.5V for 30 sec. / Above 16.2V (undervoltage lockout) GENERAL Ambient operation temperature - -20ºC … +40ºC Storage temperature - -25ºC … +85ºC Operating humidity - 95%, non condens Live current switching - 100.000 cyles MECHANICAL Connections terminal stud - M10 (3/8’-.16) Connections stud lenght - 23 mm Maximum terminal Stud Torque - 15.5 NM (140 in-lb) Terminal material - tin-plated copper Enclosure width - 95.25 mm Enclosure height - 138.94 mm Enclosure depth - 51.56 mm Weight - 0.8 kg Drilling mounting centers - 114.3mm * 76.20mm Mounting srews - 4 mm Ingress Protection Class - IP66 Enclosure Colour - RAL9011 Graphite Black Cable clearance - 28.4 mm (1.12’) Ignition Protection - SA J1171 Markings - CE, Iso 8846
