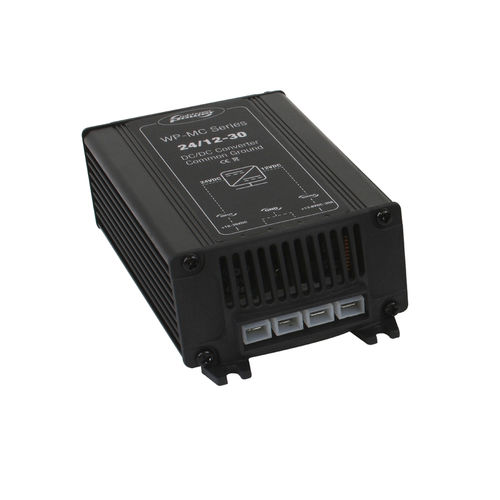

Voltage converter WP-MC 24/12-30

DCDCmarine

SPECIFICATIONS Converter type - Step down and voltage stabilizing INPUT Nominal input voltage - 24 VDC Input range, full output specifications - 18..35 VDC Input range, no defects - 0..35 VDC OUTPUT Nominal output voltage - 13.8 VDC Voltage adjustment - None Output accuracy - 1% Output voltage ripple, peakpeak - 1% Maximum output power - 490 A Continue output power - 420 A Maximum output current - 35 A Continue output current at 40 C - 30 A GENERAL Efficiency - >92% No load consumption - <25 mA Ambient operating temperature - -10 °C .. + 40 °C Storage temperature - -25 °C .. + 85 °C Operating humidity - 95% max, non-condensing Galvanic insulation - Common negative Cooling concept - Forced ventilation PROTECTIONS Overcurrent / short circuit - Limited by current sensing Over heat, shutdown - Limited power by temperaturesens MECHANICAL Connections input/output, Faston max wire - 6 mm² Enclosure Dimensions (HxWxD) - 50 x 151 x 88 mm Mounting holes footprint - Dia 4 mm 58 x 143 Weight - 500 gr Protection class - IP20 Enclosure no. - Frame 6 Enclosure Material - Anodized alu, ABS end covers Enclosure Colour - Black RAL 9011 Comply to the following standards - EN61000-6-3 (EN55022) EN61000-6-2 (EN61000-2/3/4, EN61000-4- 3) LVD 73/23/EEC (EN60335-1), e4-95/54/EC, RoHS 2002/95/EC
