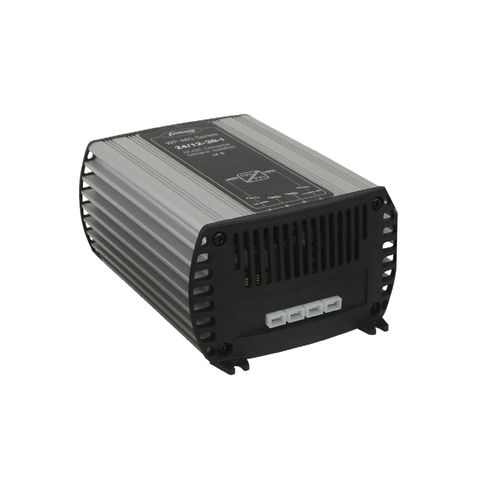

Voltage converter WP-MG 24/12-30-i

DCDCmarine

SPECIFICATIONS Converter type - Stepdown and voltage stabilizing INPUT Nominal input voltage - 24 VDC Input range, full output specifications - 20..35 VDC Input range, no defects - 0..35 VDC OUTPUT Nominal output voltage - 12.5 VDC Voltage adjustment - Yes Output accuracy - 3 % Output voltage ripple, peakpeak - 1 % Maximum output power - 400 W Continue output power - 360 W Maximum output current - 32 A Continue output current at 40 C - 30 A GENERAL Efficiency - >87% No load consumption - <25 mA Ambient operating temperature - -10 °C .. + 40 °C Storage temperature - -25 °C .. + 85 °C Operating humidity - 95%, non-condens Galvanic insulation - Yes, 500 VAC Cooling concept - Foced ventilation PROTECTIONS Overcurrent / short circuit - Limited by current sensing Over heat, shutdown - Limited power by temperature sensing MECHANICAL Connections input/output, Faston max wire - 6 mm² Enclosure Dimensions (HxWxD) - 83 x 186 x 133 mm Mounting holes footprint - Dia 4 mm 91 x 177 Weight - 1.4 kg Protection class - IP20 Enclosure no. - Frame 8 Enclosure Material - Anodized aluminium, ABS end covers Enclosure Colour - RAL 9006 Comply to the following standards - EN61000-6-3 (EN55022) EN61000-6-2 (EN61000-2/3/4, EN61000-4- 3) LVD 73/23/EEC (EN60335-1) e4-95/54/EC RoHS 2002/95/EC Note: the given specifications are subject to change without notice.
