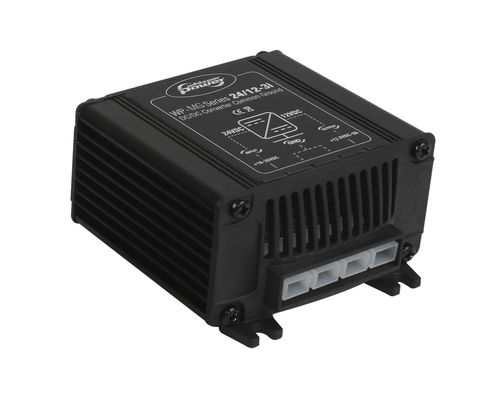

Voltage converter WP-MG 24/12-3-i

DCDCmarine

SPECIFICATIONS Converter type - Stepdown and voltage stabilizing INPUT Nominal input voltage - 24 VDC Input range, full output specifications - 20..35 VDC Input range, no defects - 0..35 VDC OUTPUT Nominal output voltage - 12.5 VDC Voltage adjustment - Yes Output accuracy - 3 % Output voltage ripple, peakpeak - 1 % Maximum output power - 38 W Continue output power - 36 W Maximum output current - 3 A Continue output current at 40 C - 3 A GENERAL Efficiency - >87% No load consumption - <25 mA Ambient operating temperature - -10 °C .. + 40 °C Storage temperature - -25 °C .. + 85 °C Operating humidity - 95%, non-condens Galvanic insulation - Yes, 500 VAC Cooling concept - Foced ventilation PROTECTIONS Overcurrent / short circuit - Limited by current sensing Over heat, shutdown - Limited power by temperature sensing MECHANICAL Connections input/output, Faston max wire - 6 mm² Enclosure Dimensions (HxWxD) - 50 x 85 x 88 mm Mounting holes footprint - Dia 4 mm 58 x 168 Weight - 250 gr Protection class - IP20 Enclosure no. - Frame 7 Enclosure Material - Anodized aluminium, ABS end covers Enclosure Colour - Black, RAL 9011 Comply to the following standards - EN61000-6-3 (EN55022) EN61000-6-2 (EN61000-2/3/4, EN61000-4- 3) LVD 73/23/EEC (EN60335-1) e4-95/54/EC RoHS 2002/95/EC Note: the given specifications are subject to change without notice.
