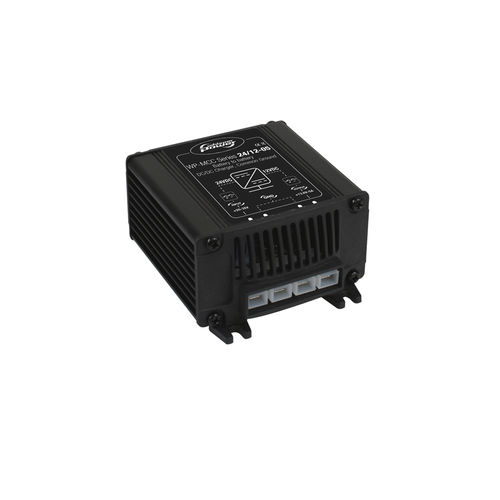

Voltage converter MCC-24/12-05

DCDCmarine

SPECIFICATIONS Converter type - Step down and voltage stabilizing, 3-step 12V battery charger INPUT Nominal input voltage - 24 VDC Input range, three step charge mode - 24..32 VDC Input range, full output specifications - 18..35 VDC Input range, no defects - 0..3 5VDC Lower input setpoint, adjustabel by software - 20 VDC Delay lower inputsetpoint, adjustable by software - 30 sec. OUTPUT Nominal output voltage - 13.6 VDC Voltage adjustment - 12..15 VDC Charge voltage 3 step - 14.40 / 13.80 VDC Absorbtion time - 1 hr Battery tempsensor - None Output voltage dimmer - None Output accuracy - 2% Output voltage ripple, peakpeak - 1% Maximum output power - 75 W / 70 W (peak power) Maximum output current - 5 A Continue output current at 40 C - 5 A GENERAL Efficiency - >90% No load consumption - <25 mA Ambient operating temperature - -10 ºC .. + 40 ºC, de-rating to + 60 ºC Storage temperature - -25 ºC .. + 85 ºC Operating humidity - 95% max, non-condensing Galvanic insulation - Common negative Cooling concept - Natural convection PROTECTIONS Overcurrent / short circuit - Limited by current sensing Over heat, shutdown - Limited power by temperature sensor OPTIONS Dimmer fuction - None Remote switch connection - None Communication - None MECHANICAL Connections input/output, Faston max wire - 2,5..6 mm2 Enclosure Dimensions (HxWxD) - 50 x 98 x 88 mm Weight - 490 gr Protection class - IP20 Enclosure Material - Alu, PA6 covers Enclosure Colour - Black RAL 9011
