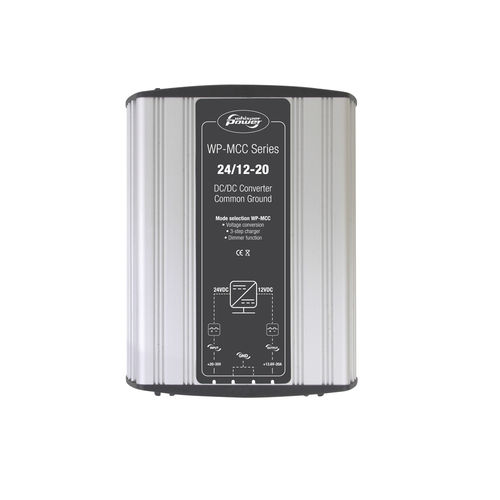

Voltage converter MCC 24/12-20

DCDCmarine

SPECIFICATIONS Converter type - Step down and voltage stabilizing, 3-step 12V battery charger light dimmer function INPUT Nominal input voltage - 24 VDC Input range, three step charge mode - 24..32 VDC Input range, full output specifications - 18..35 VDC Input range, no defects - 0..35 VDC Lower input setpoint, adjustabel by software - 20 VDC Delay lower inputsetpoint, adjustable by software - 30 sec. OUTPUT Nominal output voltage - 13.6 VDC Voltage adjustment - 12..15 VDC Charge voltage 3 step - 14.40 / 13.80 VDC Absorbtion time - 4 hr Battery tempsensor - Yes, 50 mv / cell / c Output voltage dimmer - 4.0..13.0 VDC Output accuracy - 2% Output voltage ripple, peakpeak - 1% Maximum output power - 300 W (peak power) Continue output power - 270 W Maximum output current - 20 A Continue output current at 40 C - 20 A GENERAL Efficiency - >90% No load consumption - <30 mA Ambient operating temperature - -10 ºC .. + 40 ºC, de-rating to + 60 ºC Storage temperature - -25 ºC .. + 85 ºC Operating humidity - 95% max, non-condensing Galvanic insulation - Common negative Cooling concept - Forced ventilation PROTECTIONS Overcurrent / short circuit - Limited by current sensing Over heat, shutdown - Limited power by temperature sensor OPTIONS Dimmer fuction - Yes, activated by dipswitch Remote switch connection - Yes, faston connection Communication - WhisperConnect, prepared MECHANICAL Connections input/output, Faston max wire - 6 mm2 Enclosure Dimensions (HxWxD) - 66 x 191 x 123 mm Weight - 955 gr Protection class - IP20 Enclosure Material - Alu, PA6 covers Enclosure Colour - RAL 9006 AND 9011
