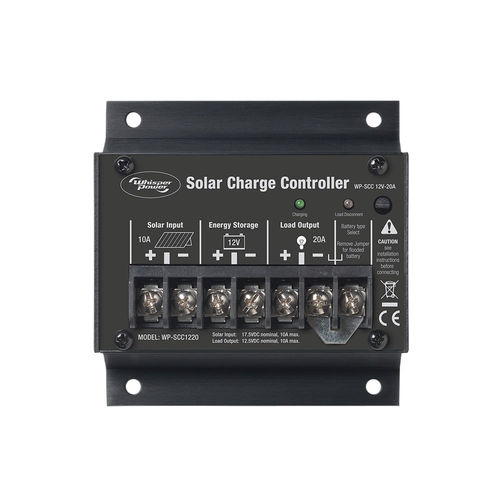

Battery charge controller PWM Suntrack 20

for solar panelsboatautomatic

Suitable for every type of battery: Gel, AGM or open lead Plug and play connectors for panel, battery and 12 V load Automatic shut down if battery voltage (too) low Can feed up to 20 amps / 450 Watts solar power to the batteries Temperature compensation as standard LEDs battery indicator and load status DC INPUT Max. PV Voltage - 26 V Max. PV Current - 20 A Voltage across PV & Battery - <0.15 V DC OUTPUT BATTERY Battery Rating - 12 V Battery Type - Sealed / Flooded Max. Charge Current - 20 A Charge Voltage Range - 14.2 - 14.6 V Float Voltage Range - 13.4 - 13.8 V Parasitic Current - <15 mA DC OUTPUT (LOAD) Load Current (Continuous) - 20 A PROTECTION PV Reverse Polarity - Protected Battery Overcharge - Yes Load Over-Discharge Voltage - <11.5 V Load Reconnected Voltage - 12.6 V Build-in Temperature Sensor - Yes INDICATOR Indicators - Charging / Load Disconnect LED Indicator ENCLOSURE Input/Output Connection - Heavy duty terminals Weight - 0.2 kg Dimensions - 100 mm x 100 mm x 33 mm
