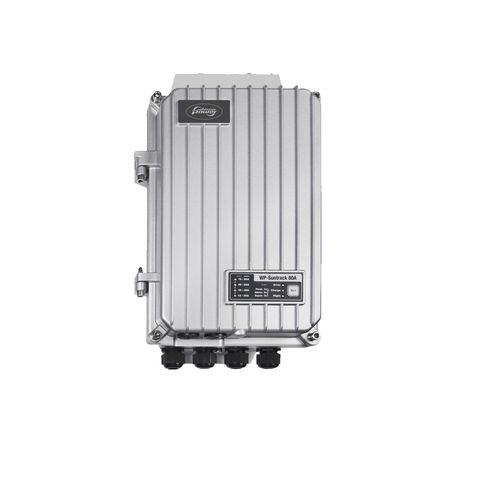

Battery charger WP-Suntrack Pro

solarfor boats

Suitable for 12, 24 and 48 VDC Solar Systems Input voltage up to 150 VDC Automatic tracking of the maximum power point Fully compliant to our Grid Independer Solar/ Diesel Power System Suitable to charge any type of battery including Lithium Ion TEMPERATURE CHARACTERISTICS Nominal Battery Volage - 12 V / 24 V / 48 V Maximum Solar Power Recommended - 1250 W (12V) / 2500 W (24V) / 5000 W (48V) Maximum Solar VOC - 75 VDC (12V) / 150 VDC (24V & 48V) Maximum Solar VMP - 75 VDC (12V) / 145 VDC (24V & 48V) ELECTRICAL CHARECTERISTICS BATTERY SIDE Maximum Output Current - 80 A Nominal Battery Voltages - Automatic or Manual set to 12 / 24 / 48 VDC Operating Voltage Range - Above battery voltage, minimum 7 V PERFORMANCES OF THE DEVICE Power Conversion Efficiency - 98% Maximum Standby Consumption (48V) - 25 mA > 1.2 W Maximum Standby Consumption (24V) - 30 mA > 0.8 W Maximum Standby Consumption (12V) - 35 mA > 0.5 W Battery Charge Modes - 6 Stages: Bulk, Absorbtion, Float, Equalisation Battery temperature compensation - -3mV / ºC / cell (25ºC ref) default value adjustable -8 to 0mV / ºC ELECTRONIC PROTECTION PV Reverse Polarity - Protected Battery reverse polarity - Up to -150 VDC Battery overvoltage - Up to -150 VDC Over temperature - Protected Reverse current at night - Prevented by relays ENVIROMENT Operating Ambient Temperature Range - -20ºC to 55ºC Humidity - 100% Ingress Protection of Enclosures - IP54, IEC/EN60529:2001 Mounting Location - Indoor GENERAL DATA Warranty - 5 Years Weight - 5.5 kg Dimensions h/w/l (mm) - 120 x 220 x 350 mm Parallel Operation (separated PV arrays) - Up to 15 devices Max wire size - 35 mm2 Glands - M20 x 1.5 COMMUNICATION Network Cabling - WPC Communication Bus
