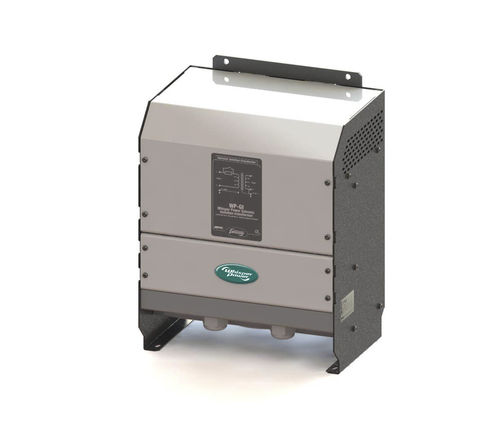

Boat transformer WP-GI 3600 Compact

electric

GENERAL Transformer type - 2 winding toroidal isolation transformer Construction method - Special vibration isolated mounting of transformer Cooling method - Temperature controlled gradually regulated forced air cooling above 60° transformer core WINDING DATA Rated power - 3.6 kVA Nominal current - 16 A / 32 A Inrush current - Softstart included 95% Ambient operating temperature - -10°C .. + 45°C, derating to 80°C Storage temperature - -25°C to 85°C Operating humidity - 95% max, non-condensing Audible noise - <40.0 dB(A); 120°C Overvoltage protection - Softstart is protected for overvoltage using fuse Earthscreen between windings - Compliant to ABYC, can carry full fault current Safety - Standards IEC 60079, IEC 60726 MECHANICAL Protection degree - IP21 Connections input/output - 6 mm 2 max. Cable gland entry - 22 mm Dimensions (HxWxD) - 380 x 290 x 208 mm per unit Mounting holes - M8 Weight - 28.6 Kg per unit Enclosure construction - Aluminum sheet metal Surface finishing - RAL9010 white + AE80104123621 black
