Working load (WL) : for nautical applications
Working Load Limit (WLL): for industrial applications only.
The safety factor is 5 times the breaking load.
WLL Breaking load / 5

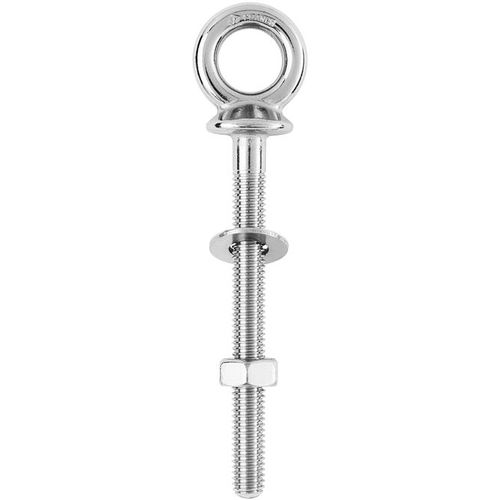

Eye bolt - M6*100 - Length: 40 mm
Description
A complete range of single piece forged products for fastenings applications
Outstanding working and breaking loads
Avillable in different sizes
Max tightening torque: 7,5 Nm
Applications
Various fastening applications
Towing application
Waterskiing lines attachment
Materials - 316L stainless Steel grade
Working load (kg) - 560
Breaking load (kg) - 900
Weight (g) - 24
A (mm) - M6x 100
B (mm) - 12
C (mm) - 25
D (mm) - 5
E (mm) - 17
F (mm) - 40
G (mm) - 34
