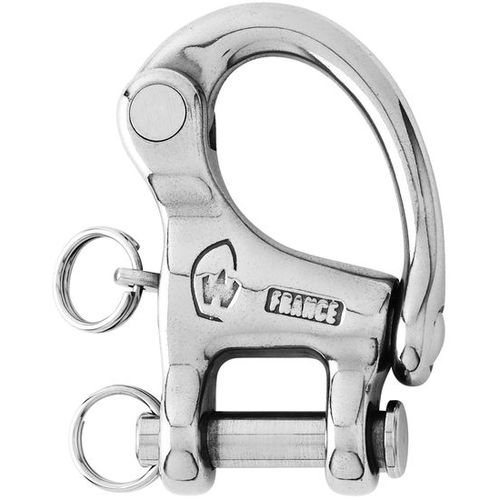

Snap shackle with fork 2295
Add to favorites
Compare this product
Characteristics
- Type
- with fork
Description
HR Forged snap shackle (Grade 17.4 ph stainless steel) with clevis pin
The plunger pin is set captive into the hook and cannot become detached
Excellent working and breaking loads
Easy to open by pulling the plunger pin (possiblity to attach a lanyard)
Materials HR 17.4 PH stainless Steel grade
Length (mm) - 70
Working load (kg) - 1280
Breaking load (kg) - 3850
Weight (g) - 130
A (mm) - 21
B (mm) - 11.5
C (mm) - 16
D diameter (mm) - 8
E (mm) - 11.5
