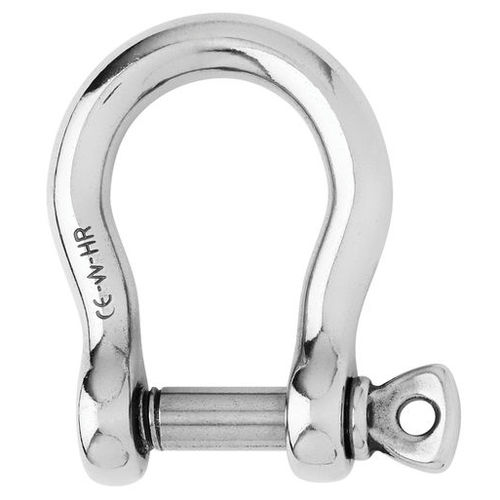

Bow shackle for sailboats 11244forgedstainless steel
Add to favorites
Compare this product
Characteristics
- Type
- bow
- Other characteristics
- forged, stainless steel
Description
Forged bow shackle in HR stainless steel grade (17,4 PH)
Outstanding working and breaking load
A HR shackle can be up to 60% more resistant than a shackle in 316L stainless stee
WLL: only for industrial applications (lifting i.e…)
CE marking and batch number
Applications
Applications requesting high loads
To be used when ample room is required
Possibility to attach several lines or cables
Do not use for moorring applications
Materials HR 17.4 PH stainless Steel grade
Working load (kg) - 1760
WLL (kg) - 820
Breaking load (kg) - 4100
Weight (g) - 68
A (mm) - 37
B (mm) - 16
C (mm) - 8
D (mm) - 16
D diameter (mm) - 10
E (mm) - 7
M (mm) - 42
