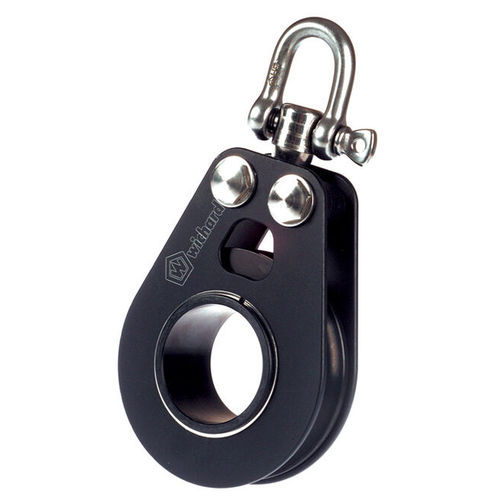

Double block 42205swivelwith swivelroller bearing
Add to favorites
Compare this product
Characteristics
- Number of sheaves
- double
- Type
- swivel
- Configuration
- with swivel
- Bearing type
- roller bearing
- Maximum line diameter
- max. rope ø 12 mm, max. rope ø 14 mm
- Application domain
- for sailing yachts, for yachts
- Applications
- spinnaker, mainsail
- Material
- stainless steel, aluminum
- Working load
1,600 kg
(3,527.4 lb)- Breaking load
4,000 kg
(8,818.5 lb)- Thickness
57 mm
(2 in)- Center diameter
80 mm
(3 in)- Weight
868 g
(31 oz)
Description
Complete range of blocks for yachts and mega yachts
High working and breaking loads
Excellent high-speed low load and high-function load characteristics
Alloy sheaves design to suit modern ropes
Protection of the sheave by the cheeks for added durability
Interchangeable head fastening systems for multiple attachment methods
Multiple position, grub screw lockable head post swivel
Applications
Genoa and spinnaker sheets
Mainsail systems and travelers
Running backstays
Materials - Torlon® roller bearing
Forged HR stainless Steel shackle Stainless Steel swivel head Hard anodized aluminium sheave
Aluminium cheeks (hard coat anodization) + Teflon
Rope size - Pour cordage de 12
Length (mm) - 155
Width (mm) - 83
