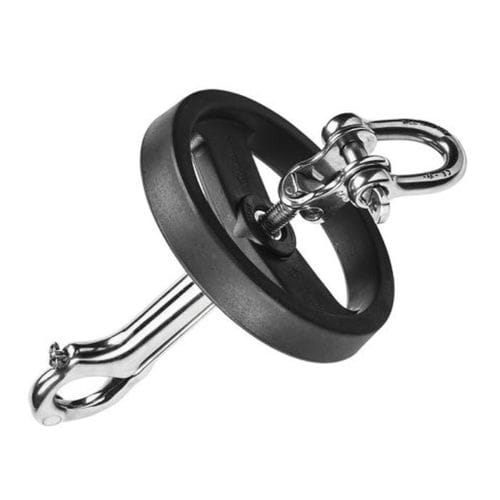

Adjuster turnbuckle 5546with hand wheelforkarticulated toggle
Add to favorites
Compare this product
Characteristics
- Type
- adjuster, with hand wheel
- Deck attachment
- fork
- Wire rope attachment
- articulated toggle
- Applications
- for rod rigging
- Other characteristics
- removable
Description
Ideal for fitting a removable inner forestay (genoa or solent)
Easy to install thanks to the snap shackle
Robust and performant
Strongly recommended when there is a furling system
The wheel model offers an outstanding value for money + dimensions
Technical data:
Handling load: 1200 Kg
Length pin to pin closed / open: 250 / 310 mm
Toggle length x width: 15 x 20 mm
Pin diameter: 12 mm
Stud diameter: 12 mm
For wire diameter: 5 / 6 / 7mm
Applications
installation of a babystay adjuster to set up a solent, genoa ….
Improve the overall performance of the boat (especially those equipped with a reefing-furling system)
Materials Snap hook in HR 17.4 PH stainless Steel 316L stainless Steel grade -
Working load (kg) - 2800
Breaking load (kg) - 5300
Weight (kg) - 1.09
