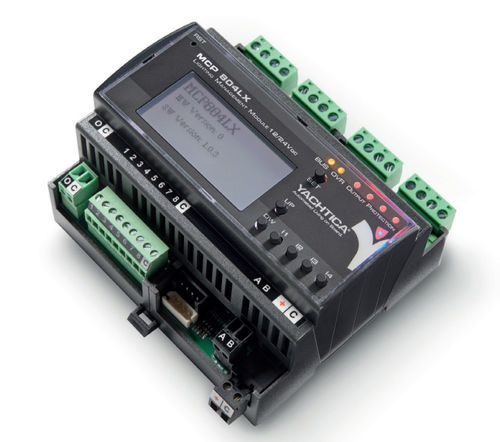

LED light lighting control module MCP 804LX

for yachts

The MCP 804LX module is equipped with an integrated programmable microcontroller used to control and dimm 4 different 12/24VDC lighting sources, on positive.The module is rated to work with voltage driven monochromatic LEDs (with or without driver added). Each channel handles up to 10A loads. Lighting Management Module 12/24VDC 4 programmable dimmer on positive outputs 12/24VDC (PWM 400 Hz adjustable) Current measure on each outputs, with limit settable with Cabot Software 8 programmable dry contact inputs EasyBUS communication Stand-alone mode Programmable functionality via Cabot Advanced managing of overload and short circuit Optoisolation between electronic and power Control and monitoring display on the front panel Dipswitches to set standard programming DIN rail installation (6M) Detachable terminal blocks Conformal coating treatment
