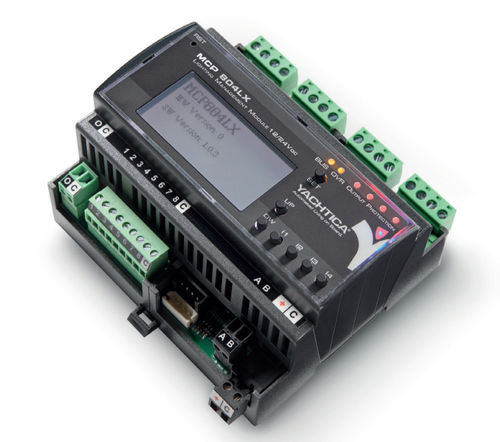

LED light lighting control module RGB 804LX

for yachts

The RGB 804LX module is equipped with an integrated programmable microcontroller used to control and dimm 4 different 12/24VDC lighting sources. The module is rated to work with voltage driven monochromatic RGB, RGB-White or Double White LEDs (with or without driver added) or with a PWM signal (if 3-wire driver provided). It can also be used to control incandescent and halogen lamps, at 12/24VDC. Each channel handles up to 8A loads. Lighting Management Module LED RGBW 4 programmable dimmer outputs12/24VDC (PWM 400Hz adjustable) Composite whites and colours smart management 8 programmable dry contact inputs EasyBUS communication Stand-alone mode Programmable functionality via Cabot Advanced managing of overload and short circuit Optoisolation between electronic and power Control and monitoring display on the front panel Dipswitches to set standard programming DIN rail installation (6 M) Detachable terminal blocks Conformal coating treatment
