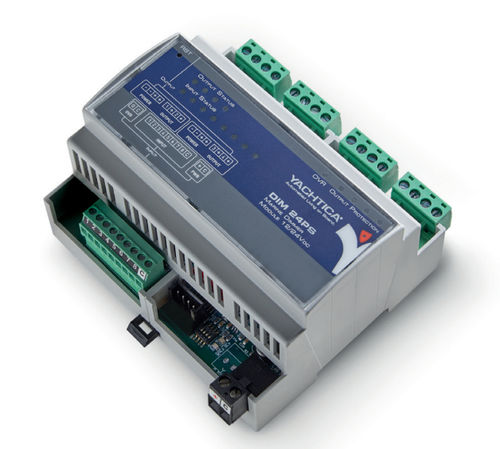

LED light light dimmer DIM 24PS

for yachts

The DIM 24PS module is equipped with an integrated microcontroller used to control 4 different 12/24VDC lighting sources, in dimmer or on/off mode. The module is rated to work with voltage driven monochromatic LEDs (with or without driver added) or with a PWM signal (if 3-wires driver provided). It can also be used to control 12/24VDC incandescent and halogen lamps. Each channel handles up to 10A loads. Marine Dimmer Module 12/24VDC 4 dimmer outputs or on/off (on positive) with memory 12/24VDC (PWM 200Hz) 8 dry contact inputs Electronic protection against overload and short circuit DIN rail installation (6M) Detachable terminal blocks Conformal coating treatment
