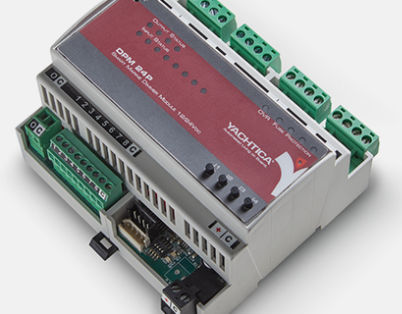

Yacht light dimmer DPM 24P (-F)

The DPM 24P module is equipped with an integrated microcontroller used to control and dimm 4 different 12/24VDC lighting sources. The module is rated to work with voltage driven monochromatic LEDs (with or without driver added) or with a PWM signal (if 3-wires driver provided). It can also be used to control 12/24VDC incandescent and halogen lamps. Each channel handles up to 16A loads. Smart Marine Dimmer Module 12/24 VDC 4 dimmer outputs with memory 12/24VDC (PWM 400Hz) Programmable scenarios via buttons 8 dry contact inputs Electronic protection against overload and short circuit Monitoring LEDs and control buttons on the front panel DIN rail installation (6M) Detachable terminal blocks Conformal coating treatment
