Diesel engine windlass
for boatsfor shipshorizontal

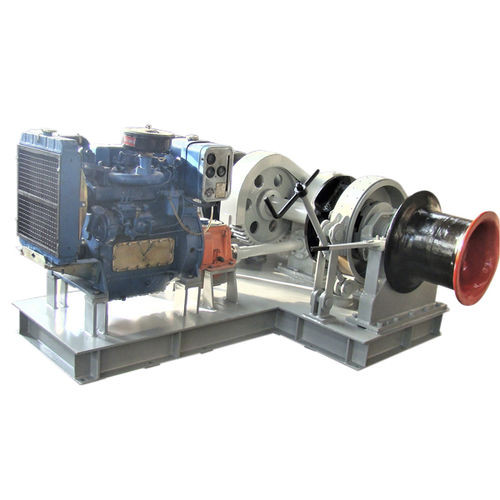

Diesel engine windlass - Zhongyuan Ship Machinery Manufacture (Group) Co., - for boats / for ships / horizontal
Diesel engine windlass - Zhongyuan Ship Machinery Manufacture (Group) Co., - for boats / for ships / horizontal
Add to favorites
Compare this product


Characteristics

Operation
diesel engine
Application domain
for boats, for ships
Mounting
horizontal
Set-up
above deck
Number of drums
single-drum, double-drum
Function
anchor with capstan, stainless steel base, automatic free-fall, double anchor, with chain distributor
Classification
DNV-GL, ABS, BV, CCS, IRS, KR, LR, NK, RINA, RS
Working load

9,177 kg
(20,232 lb)

Chain diameter

28 mm
(1 in)

Anchoring speed

9,000 mm/min
(5.91 in/s)

Description

This marine anchor windlass, available with either a double or single gypsy, is powered by a diesel engine. There are two primary drive configurations. Type 1 utilizes the engine to drive the windlass through a transmission gearbox and worm gear. Type 2 involves the engine powering a hydraulic power unit, which in turn drives a hydraulic motor to operate the windlass. The engine's rated power is selected based on the windlass's overload figure according to class rules. Engine-driven anchor winches are a key focus of our product line, especially for use on barges. We use internationally renowned diesel engine brands such as Deutz and Cummins, known for their compact size and structure. Alternatively, local brands like Weichai and Changcha are cost-effective options. The engine is equipped with a silencer to reduce noise levels and protect the crew's health. Spare parts for local brand engines are widely available worldwide. Product Features: compact size and structural efficiency Lower noise level in operation Economic anchor equipment solution for the barge Class certified engine and environment friendly Lower maintenance cost spare parts available
