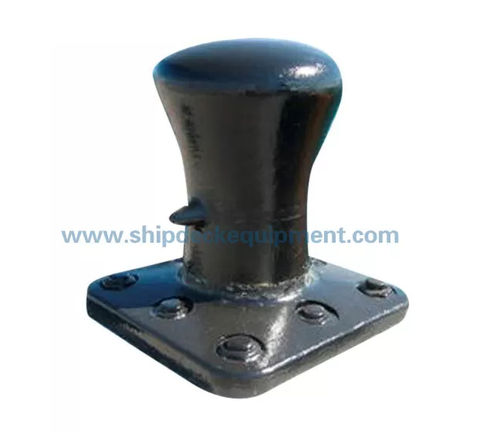

Terminal mooring bollard SBD series

singlecast steelcast iron

Mooring Single bitt bollard is usually designed for small ships and vessels, it's common material is cast steel, also sometimes stainless steel. It has different capacities ,from 20T to 200T. there are several different material , Cast steel, cast iron, cast SG iron , the safe factor of bollard is 3 time. The face angle of cable is -45 to 45 (vertical), 0 to 1800(horizontal) . Besides, we can provide you bollard according to your specific requirements. If you are interested in any of our products, please feel free to contact us. Main Technical Specification: 1. Bollard Capacity: 20 to 200 tons; 2. Bolts Quantity: 4 to 8; 3. Material Type: Cast C-Mn Steel, Casting Stainless Steel; Cast Iron, Cast SG Iron; 4. Safe factor: 3 time. 5. Face angle of cable :-45~+45 (vertical), 0~1800 (horizontal) 6. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available. 7. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
