Terminal mooring bollard GB 10106for shipscross
Add to favorites
Compare this product
Characteristics
- Application domain
- for terminals, for ships
- Type
- cross
Description

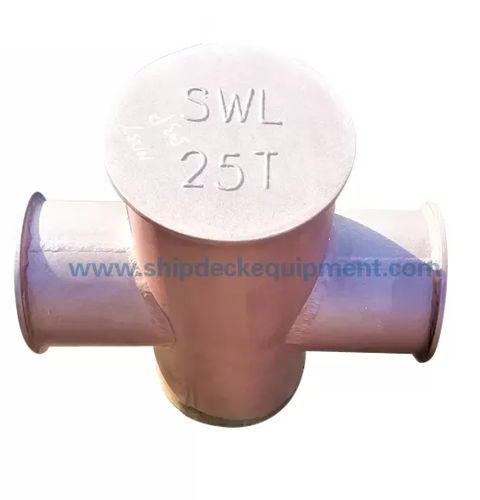

GB 10106-88 ships cross bitts, adopting standard JIS F2804-76 for reference, have two types: type A and type B. Type A ship cross bitts is directly welded on the deck. While type B is welded on the deck liner.
Main Technical Specification:
1. Technical Standard: GB 10106-88 & JIS F2804-76
2. Nominal Diameters: 150 to 350mm;
3. Type: Type A & Type B
4. Material: Mild Steel; Stainless Steel ;
5. Weight: 31 to 204kg;
6. Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Mirror or Satin Polished, Polished, Galvanized, customized surface treatment available.
7. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, Etc.
