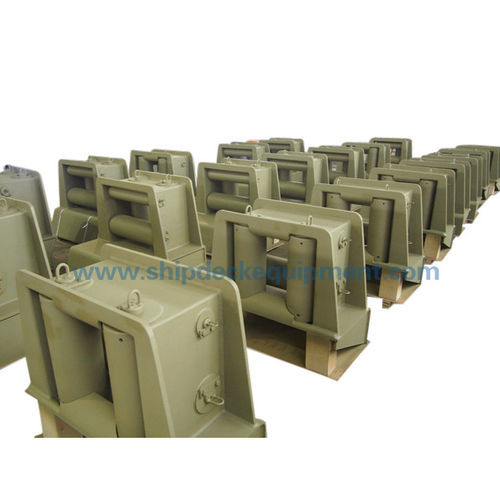

Ship warping fairlead 4R

roller

Type 4R has 2 vertical & 2 horizontal rollers with one rope-passing opening. The nominal sizes, of universal fairleads are denoted by reference to the outside diameter of the main roller in millimeter, in terms of the nearest number drawn from a basic series of preferred number. For the universal fairleads having the same roller diameter, the alphabetical character is followed by nominal size for the different SWL The nominal sizes are: 140, 160, 180, 200, 250, 300A, 300B, 400A, 400B and 400C. Main Technical Specification: Model Type: 4R, 4 rollers; Function: Mooring and towing; Nominal Size:140, 160, 180, 200, 250, 300A, 300B, 400A, 400B and 400C. Safe Working Load (SWL):14~140MT Load Direction: Horizontal Load and Vertical Load Materials: C-Mn Steel, Mild Steel, Stainless Steel Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Polished, Galvanized, customized surface treatment available. Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS, RS, RINA.
