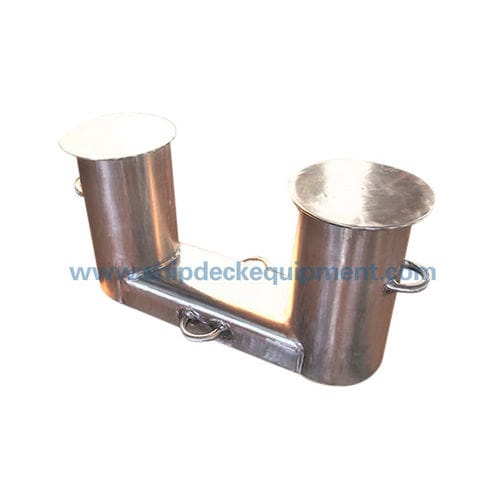

Ship mooring bollard DIN 82607:1995-1for terminalsdoublestainless steel
Add to favorites
Compare this product
Characteristics
- Application domain
- for terminals, for ships
- Type
- double
- Material
- stainless steel
Description
DIN 82607:1995-1 stainless steel double bitt bollard ship towing equipment is designed and shaped according to berthing capacity, wharf structure to meet the safety and convenience for the dock, mooring, shifting berth, turning around. Its' appearance ropes are wire rope, manila and sisal fiber rope, synthetic rope. Also we can provide you other standard of marine bollards.
Main Technical Specification:
Type: DIN-1, DIN-2, DIN-3, DIN-5, DIN-8, DIN-12, DIN-20, DIN-32;
Materials: Mild Steel, C-Mn Steel, Stainless Steel, also can supply special steel for icebreaker.
Nominal Diameters:140 to 560mm;
Weight: 21 to 770kg;
Surface treatment: sandblasting to S2.5 + one layer of epoxy shop primer, Mirror or Satin Polished, Polished, Galvanized, customized surface treatment available.
SWL Range: 10-320KN;
Classification Certificates:CCS, NK, BV, ABS, DNV-GL, LR, KR, IRS,
