- Zhongyuan Ship Machinery Manufacture (Group) Co.,

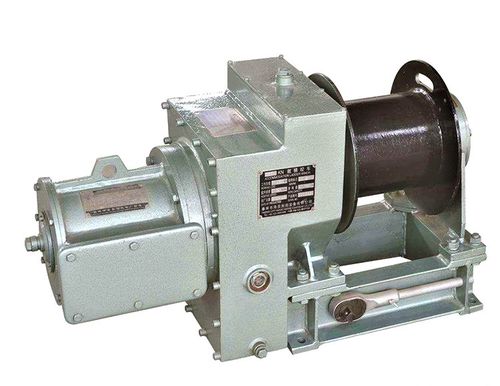

Ship winch accomodation ladderelectric drivesingle-drum
Add to favorites
Compare this product
Characteristics
- Application domain
- for ships
- Use
- accomodation ladder
- Drive mechanism
- electric drive
- Technology
- single-drum
- Classification
- ABS, BV, CCS, DNV-GL, IRS, KR, LR, NK, RINA, RS
- Voltage
380 V, 440 V
- Bollard pull
1,020 kg, 1,632 kg
(2,249 lb, 3,598 lb)- Drum speed
Max.: 12 m/min
Min.: 8 m/min
- Rope diameter
13 mm
(1 in)
Description
ISO 7364 electric motor driven 10 / 16 KN marine accommodation ladder winch mainly used for handling accommodation ladders on commercial vessels as well as hoisting and sliding the pilot ladders. This winch is satisfied with international standard ISO7363 and Chinese standard GB/1392-1985, it is of compact structure equipped with electric control switch, it is reliable and easy in operating, the winch is also equipped with manual drive which can operate in case ship’s lost power.
We can produce winches provided with hydraulic, pneumatic, electric or manual drive. Our ladder winch is high versatility, compact structure, small volume, light weight, easy maintenance, driving stably, light noise, with big drum rope capacity to make you a wide range of choice for the lifting height or pulling length, adjustable lifting or pulling speed for different usage environment.
