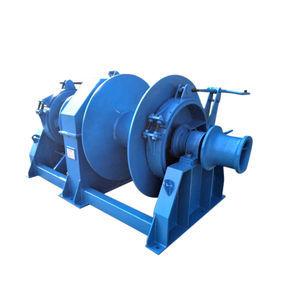

Ship winch
towinghydraulic driveelectrical-hydraulic

Ship winch - Zhongyuan Ship Machinery Manufacture (Group) Co., - towing / hydraulic drive / electrical-hydraulic
Ship winch - Zhongyuan Ship Machinery Manufacture (Group) Co., - towing / hydraulic drive / electrical-hydraulic
Add to favorites
Compare this product


Characteristics

Application domain
for ships
Use
towing
Drive mechanism
hydraulic drive, electrical-hydraulic
Technology
with spooling device, waterfall, double-drum
Material
carbon
Motor power

Min.: 15 kW
(20.39 hp)

Max.: 200 kW
(271.92 hp)

Voltage

Min.: 220 V

Max.: 690 V

Bollard pull

Min.: 5,000 kg
(11,023 lb)

Max.: 500,000 kg
(1,102,311 lb)

Drum speed

Min.: 3 m/s
(10 ft/s)

Max.: 45 m/s
(148 ft/s)

Rope diameter

Min.: 11 mm
(0 in)

Max.: 90 mm
(4 in)

Drum capacity

Min.: 30 m
(98'05" )

Max.: 1,000 m
(3280'10" )

Description

The hydraulic waterfall dual drum winch is designed to pull heavier objects. It has more drum rope capacity. Two drums can work simultaneously and independently. Auto spooling tool device makes sure wire being wrapped and stored properly. It is controlled locally or remotely. Force meter hydraulic bake can be equipped as alternatively. It is widely used on engineering ship, tug boat, dry dock and floating dock.
