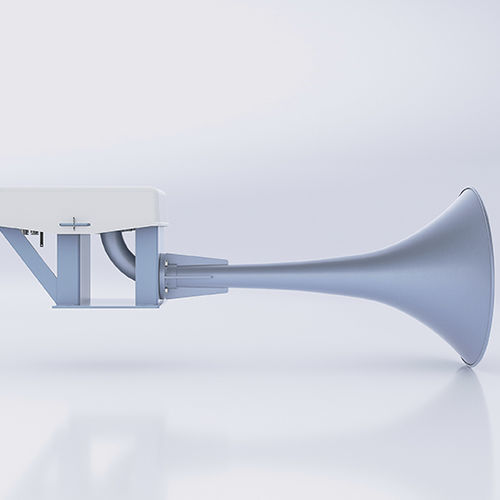

The ZÖLLNER MAKROFON ZM200 is a diaphragm sound transmitter operating on compressed air. The signal is released by an electromagnet or manually using a hand pull-rope. To avoid the costly laying of a pull-rope, a second electromagnet for emergency voltage can be provided. A thermostat controlled anticondensation heating keeps the sound horn and the operating valve free from condensed water and thus from ice.
type: MAKROFON ZM 200/110b ZVE(E)H
ship's length: => 200 m
frequency: 110 Hz
sound pressure level at 1 m: 143 dB
air pressure: 7 - 40 bar
air consumption free, dry air: 40-80 l/sec
system voltage: 230 V AC oder 115 V AC oder 24 V DC
protection type: IP 56
