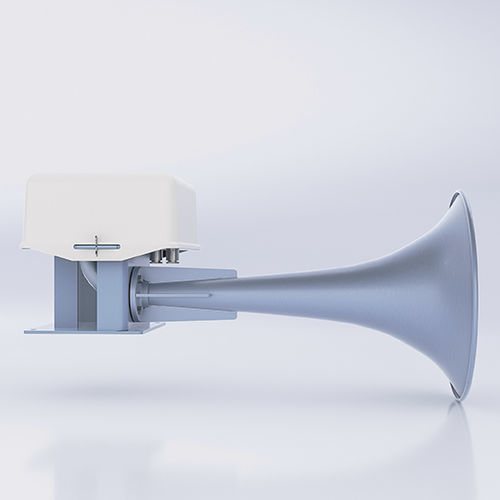

Pneumatic horn Makrofon M125/160b ZVE(E)Hfor ships 75-200 mIP56emergency
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Application domain
- for ships 75-200 m
- Protection rating
- IP56
- Other characteristics
- emergency
- Sound intensity
138 dB
- Frequency
160 Hz
Description
The ZÖLLNER MAKROFON M125 is a diaphragm sound transmitter operating on compressed air. The signal is released by an electromagnet or manually using a hand pull-rope. To avoid the costly laying of a pull-rope, a second electromagnet for emergency voltage can be provided. A thermostat controlled anticondensation heating keeps the sound horn and the operating valve free from condensed water and thus from ice.
type: MAKROFON M125/160b ZVE(E)H
ship's length: 75 -< 200 m
frequency: 160 Hz
sound pressure level at 1 m: 138 dB
air pressure: 7 - 40 bar
air consumption free, dry air: 20-30 l/sec
system voltage: 230 V AC or 115 V AC or 24 V DC
protection type: IP 56
